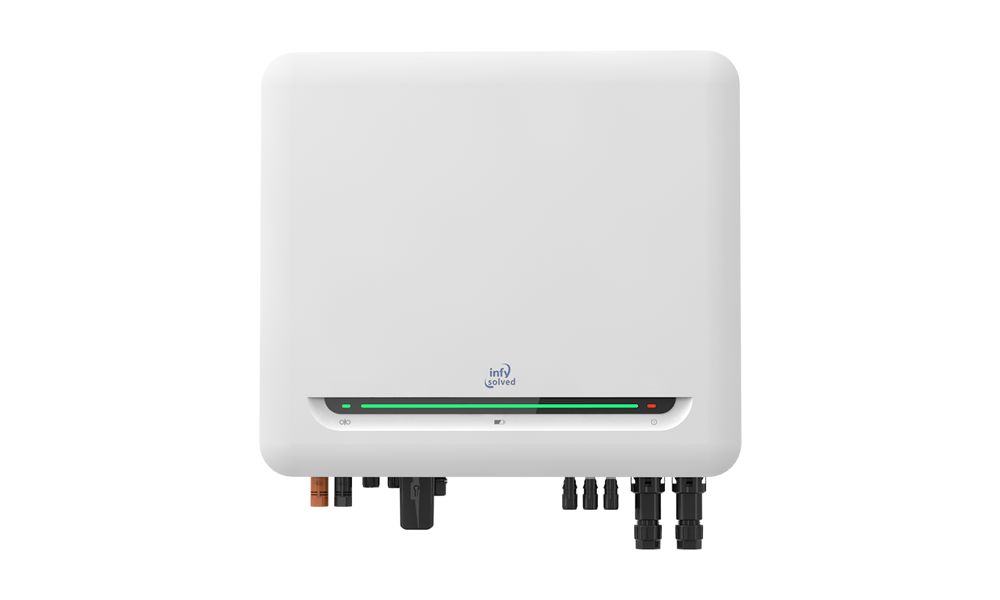

ISH6K48EA-G1

ISH6K48EA-G1 bidirectional energy storage inveter can be connected to photovoltaic and energy storage systems to achieve on-grid and off-grid functions, bidirectional intelligent energy control, and energy scheduling. It has uninterruptible power supply (UPS) function with 1O ms switching time, and supports DC flashover protection.

Consult

ISH6K48EA-G1
Home > PRODUITS > Household Energy Storage
Product Features Classification
Product Features
Safe and ReliableSafe and Reliable

■ Protection class: IP65
■ DC flashover protection
■ Maximum 1.5 times DC oversizing

Intelligent and EfficientIntelligent and Efficient

■  Maximum photovoltaic inversion efficiency: 98.4%
■  Seamless UPS function with less than 10ms switching time

Classification
ISH6K48EA-G1

Photovoltaic Input Data On-grid Output Data Battery Input Data Backup Power Data Efficiency Protection Function Basic Parameters

Photovoltaic Input Data
  ISH5K48EA-G1   ISH6K48EA-G2
  5kW   6kW
Maximum photovoltaic input power (W) 7500   9000
Maximum DC voltage (V)   550
Start-up voltage (V)   90
Rated voltage (V)   360
MPPT operating voltage range (V)   80-550
Number of MPPTs   2
Number of strings per MPPT   1
Maximum input current per MPPT (A)   16
Maximum short-circuit current per MPPT (A)   23
On-grid Output Data
  ISH5K48EA-G1   ISH6K48EA-G2
Rated power 5000W   6000W
Maximum apparent power 5000VA   6000VA
Rated voltage (Vac)   230
Rated frequency (Hz)   50/60 (45Hz~55Hz/55Hz~65Hz)
Maximum output current (A) 22.7   27.3
Power factor   1 (0.8 leading...0.8 lagging)
Total current waveform distortion rate   <3%
Battery Input Data
  ISH5K48EA-G1   ISH6K48EA-G2
Battery type   Lithium-ion battery
Rated battery voltage (V)   48
Battery voltage range (V)   40~60
Maximum charge/discharge current (A) 100   120
Maximum charge/discharge power (W) 5000   6000
Backup Power Data
  ISH5K48EA-G1   ISH6K48EA-G2
Maximum apparent power (VA) 5000   6000
Maximum output current (A) 22.7   27.3
Rated voltage (V)   230
Rated frequency (Hz)   50/60Hz
Total voltage waveform distortion rate   <3%
Efficiency
  ISH5K48EA-G1   ISH6K48EA-G2
Maximum efficiency   98.4%
European efficiency   98%
Maximum battery charge/discharge efficiency   96%
MPPT efficiency   99.9%
Protection Function
  ISH5K48EA-G1   ISH6K48EA-G2
Insulation impedance detection   Available
Residual current detection   Available
Input reverse connection protection   Available
Anti-islanding protection   Available
AC short circuit protection   Available
DC switch   Available
DC surge protection   Available
AC surge protection   Available
DC flashover protection   Optional
Basic Parameters
  ISH5K48EA-G1   ISH6K48EA-G2
Operating temperature   -25~+60°C
Relative humidity   0~95%
Cooling method   Natural cooling
Topology   Transformer-free design
Maximum operating altitude (m)   2000
Human-machine interaction   LED, WLAN+APP
BMS communication method   CAN/RS485
Electric meter communication method   RS485
Monitoring method   BT/Wi-Fi/GPRS
Weight (kg)   20
Dimensions (mm)   460(width)/410(height)/150(depth)
Nighttime self-consumption power (W)   <10
